Place of Origin: | CHINA |
---|---|
Minimum Order Quantity: | 1SET |
Price: | Negotiable |
Packaging Details: | Customized |
Delivery Time: | 15-30work days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 10000 Set/Sets per Month |
Measurement Accuracy: | ±2mm | Resolution: | 0.1mm |
---|---|---|---|
Repeatability: | 0.5mm | Supply Voltage: | 10 ~ 24VDC |
Power Consumption: | 1W | Modulus: | 4 ~ 20mA |
High Light: | 20mA Continuous Casting Machine Parts,RS 422 Continuous Casting Machine Parts,20mA laser rangefinder |

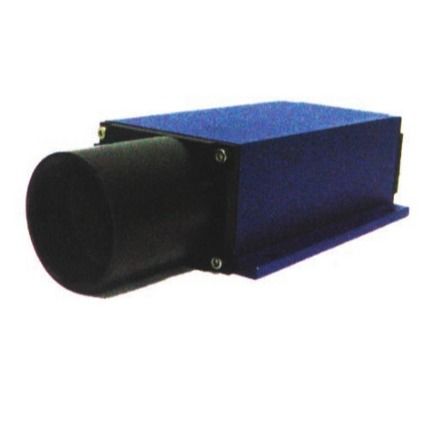

Phase-comparison method laster range finder for Continuous Casting Machine Parts
Product overview
ZYT laser rangefinder uses the laser phase comparison method to measure the distance to the object surface or reflected target surface without contact.
The product has reasonable structure design, equipped with adjustable mounting bracket, lens purging device, air cold water cooling device, so it is more suitable for industrial applications, especially for industrial applications
High precision, non - direct contact applications, such as crane positioning and metallurgical production line control
Equipment model
ZYT-0100-1 10Hz RS232/RS422
ZYT-0100-2 50Hz RS232/RS422
Zyt-405 regional ranging detection control; Output switching quantity or level signal
Technical indicators
1 Measurement accuracy: ±2mm
2 Resolution: 0.1mm
3 Repeatability: 0.5mm
4 Measuring distance: 0.1 ~ 30m any object surface
30 ~ 150m need reflector
5 Supply voltage: 10 ~ 24VDC
6 Power consumption: 1W
7 Laser grade: red visible at 650nm, safety laser level 2 ≤1mW
8 On/Off quantity: alarm output
9 Modulus: 4 ~ 20mA
10 Protection level: IP65
11Dimensions: 195×55×115mm
12 Outer shell: aluminum shell
13 Service life: more than 50,000h
14 Weight: 2.0 kg
Product features
Millimeter measurement accuracy
Continuous detection of moving objects
Suitable for high temperature/dusty environment
Precision - rugged - no reflector board required
With area detection control and counting function
